Industrial Manufacturing
3D Printing Service
Metal 3D printing in the industrial field has remarkable advantages. It can easily create complex and irregular metal components, breaking through the limitations of traditional processing methods. The utilization rate of materials is high, significantly reducing costs. The printing process is flexible, which is conducive to rapid customization and small-batch production. The finished products have high density and excellent performance, effectively improving the quality and reliability of industrial equipment.
What do you want printed?
You can also send us 3D object files at our email:jerry@coreprint3d.com
Industrial Component Manufacturing with 3D Printing

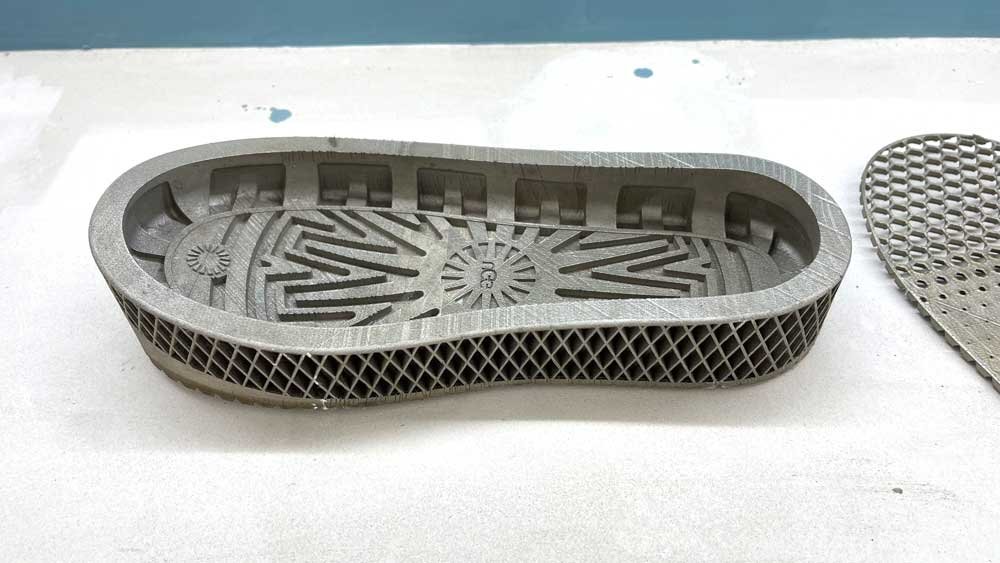

Shoe – Sole Mold
- Manufacturing technology: Selective Laser Melting (SLM) / (DMLS)
- 3D printing material: Stainless steel, titanium alloy, Inconel
Selective Laser Melting (SLM) and Direct Metal Laser Sintering (DMLS) offer great benefits. They enable high – precision creation of complex structures, like internal channels in heat exchangers. These techniques are material – efficient, with up to 90% utilization. Parts made have excellent mechanical properties. They save time in prototyping and small – batch production, and are cost – effective in the long run.
Industrial Component Manufacturing 3D Printing

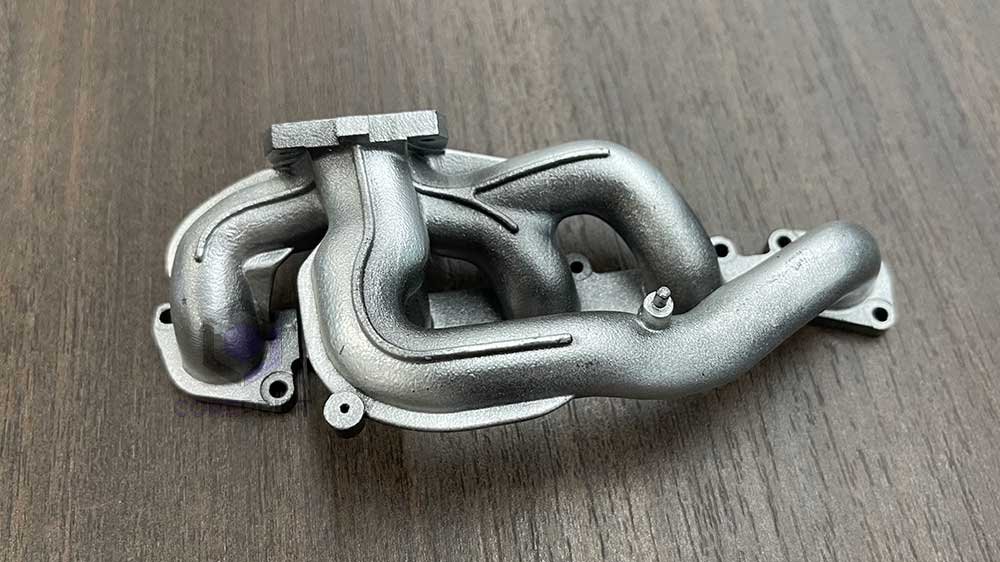

Heterotypic Pipes
- Manufacturing technology: Selective Laser Melting (SLM)
- 3D printing material: Titanium-aluminum alloy
Using SLM technology to manufacture automotive turbine components can precisely create complex shapes, with good performance and short production cycle, and also enable lightweighting and customization.
Metal Material Properties
| Materials | Resolution | Condition | Ultimate Tensile Strength (MPa) | Yield Stress (MPa) | Elongation (%) | Hardness |
| Stainless Steel (17-4 PH) | 20 μm | Solution & Aged (H900) | 199 | 178 | 10 | 42 HRC |
| 30 μm | Solution & Aged (H900) | 198 | 179 | 13 | 42 HRC | |
| Stainless Steel (316L) | 20 μm | Stress Relieved | 82 | 56 | 78 | 90 HRB |
| 30 μm | Stress Relieved | 85 | 55 | 75 | 88 HRB | |
| Aluminum (AlSi10Mg) | 20 μm | Stress Relieved | 39 | 26 | 15 | 42 HRB |
| 30 μm | Stress Relieved | 50 | 33 | 8 | 59 HRB | |
| 40 μm | Stress Relieved | 43 | 27 | 10 | 50 HRB | |
| Cobalt Chrome (Co28Cr6Mo) | 20 μm | As Built | 182 | 112 | 17 | 39 HRC |
| 30 μm | As Built | 176 | 119 | 14 | 38 HRC | |
| Inconel 718 | 20μm | Stress Relieved | 143 | 98 | 36 | 33 HRC |
| 30 μm | Stress Relieved | 144 | 91 | 39 | 30 HRC | |
| 30 μm | Solution & Aged per AMS 5663 | 208 | 175 | 18 | 46 HRC | |
| 60 μm | Stress Relieved | 139 | 83 | 40 | 27 HRC | |
| 60 μm | Solution & Aged per AMS 5663 | 201 | 174 | 19 | 45 HRC | |
| Titanium (Ti6Al4V) | 20 μm | Stress Relieved | 153 | 138 | 15 | 35 HRC |
| 30 μm | Stress Relieved | 144 | 124 | 18 | 45 HRC |
What Industrial Component Manufacturing generally make use of metal 3D printing?
- Engine components
- Antenna Reflectors
- Thermal Management Elements
- Vehicle Exteriors and Interiors
- Engine Block Prototypes
- Lightweight Chassis Parts
- Racing-Specific Components
- Conformal Cooling Molds
- Pipeline Repair Components
What 3D printing technologies are generally used for Industrial Component Manufacturing?
- Fused Deposition Modeling (FDM)
- Electron Beam Melting (EBM)
- Binder Jetting Technology
- Fused Deposition Modeling (FDM)
- Stereolithography (SLA)
- Directed Energy Deposition (DED) Technology
The 3D printing technology for Industrial Component Manufacturing has remarkable advantages. It can manufacture complex structures, achieve customization and rapid prototyping, and also enable lightweight design, improve material utilization rate, repair parts, and realize flexible production.
