Medicine Manufacturing
3D Printing Service
The medical industry benefits significantly from 3D printing. It can customize medical products to meet individual patient needs. It enables rapid model – making for faster R & D and surgical planning. It can create complex structures to enhance product functionality. Additionally, it reduces costs and material waste, improving the utilization of medical resources.
What do you want printed?
You can also send us 3D object files at our email:jerry@coreprint3d.com
Medicine Manufacturing 3D Printing
Medical models for teaching demonstration
- Manufacturing technology:Stereolithography (SLA)
- 3D printing material: Transparent resin
Products printed using SLA technology feature high precision, good surface quality, rich details, and the ability to create complex structures, ideal for demanding medical models.
Automobile Manufacturing 3D Printing
Medical-grade knee pads
- Manufacturing technology: Selective Laser Melting (SLM)
- 3D printing material:
Transparent TPU
Using SLM technology to manufacture automotive turbine components can precisely create complex shapes, with good performance and short production cycle, and also enable lightweighting and customization.
Resin Material Properties
| Material Name | Material Characteristics | Density at 25℃, cm³ | Minimum Wall Thickness, mm | Tensile Strength, MPa | Flexural Strength, Mpa | Material Hardness |
| White Resin(2018-2) | The white material features fast molding speed and high printing precision. The printed parts have excellent moisture resistance, good chemical resistance, a low shrinkage rate, good dimensional stability, and durability. The parts also have a certain degree of adsorption force, which can meet the requirements of conventional painting. Meanwhile, it possesses excellent mechanical properties. | 1.15/cm³ | 0.8mm | 60-75Mpa | 70-75Mpa | 82邵氏D/260 - 300(HV)/24-28(HB) |
| White Resin(8111) | 1.14/cm³ | 42.1Mpa | 95Mpa | 86邵氏D/300- 350(HV)/28-32(HB) | ||
| White Resin(HP-02A) | 1.14/cm³ | 25-30Mpa | 60-75Mpa | 85邵氏D/280- 330(HV)/26-30(HB) | ||
| Tough Resin(XLST) | Super-tough, high-hardness, and high-strength ABS material; Thin-walled parts with a thickness of 2.5mm can withstand a temperature of 70°C; It has excellent detail presentation, a low shrinkage rate, good dimensional stability, and durability. It can meet the requirements of painting and is suitable for components that resist high-intensity impacts and need shock absorption. | 1.15/cm³ | 40-58Mpa | 71-76Mpa | 82邵氏D/320- 370(HV)/30-34(HB) | |
| Tough Resin(8228) | 1.15/cm³ | 51.21Mpa | 93.5Mpa | 82邵氏D/320- 370(HV)/30-34(HB) | ||
| Transparent Resin(8001) | The colorless material has proven dimensional stability through practice, and it is suitable for general purposes, detailed modeling, and transparent visual simulation. | 1.12/cm³ | 41.56MPa | 75.95MPa | 83邵氏D/270- 330(HV)/25-30(HB) |
What products in the medical industry will use 3D printing?

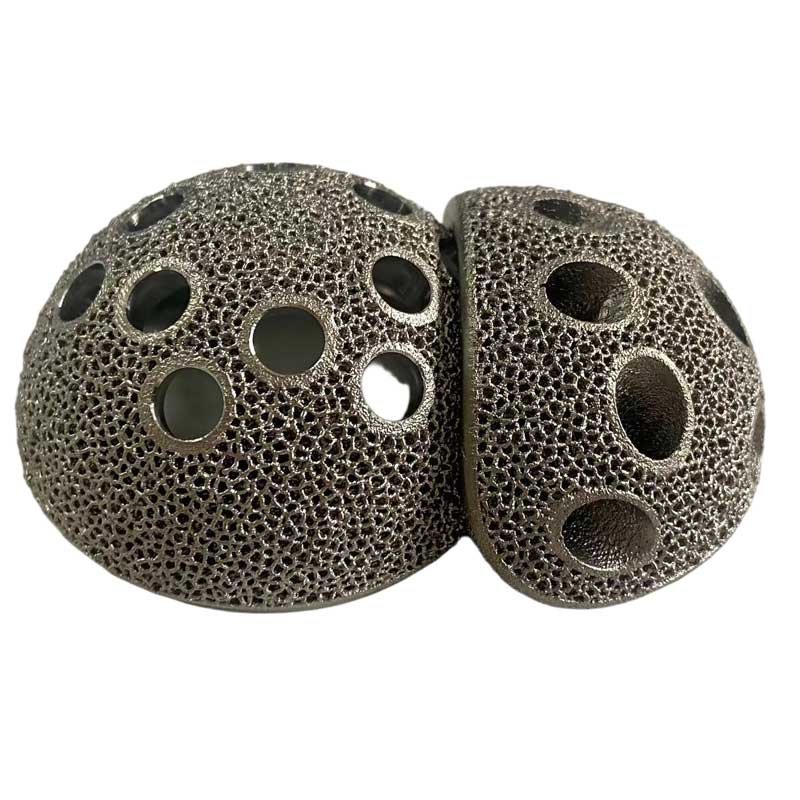

- Orthopedic implants
- Prosthetics and orthotics
- Surgical guides
- Anatomical models
- Personalized rehabilitation devices
- Orthodontic models
- Customized drug formulations
- Tissue engineering scaffolds
- Complex structural parts
What 3D printing technologies are generally used for medical industry?
- Fused Deposition Modeling (FDM)
- Electron Beam Melting (EBM)
- Binder Jetting Technology
- Fused Deposition Modeling (FDM)
- Stereolithography (SLA)
- Directed Energy Deposition (DED) Technology
The 3D printing technology for medical industry has remarkable advantages. It can manufacture complex structures, achieve customization and rapid prototyping, and also enable lightweight design, improve material utilization rate, repair parts, and realize flexible production.
