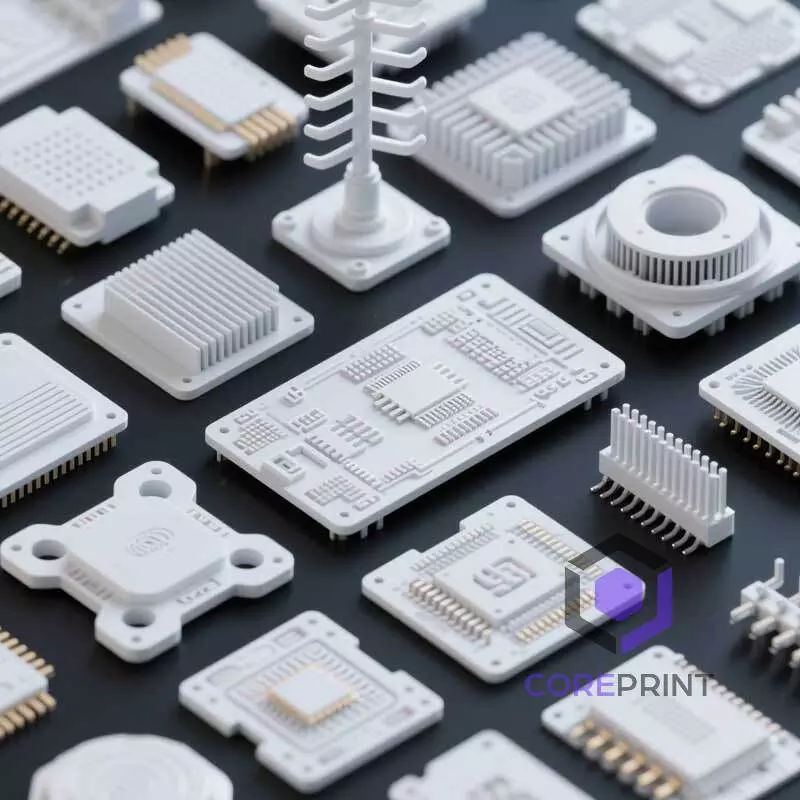

Aiuminum Nitride 3D Printing Service
3D printing of aluminum nitride (AlN) ceramics combines high-performance materials with advanced tech. AlN offers 168–320 W/(m·K) thermal conductivity, 2200°C heat resistance. Using DLP and binder jetting, it creates complex structures like microchannels with >90% material efficiency. Enabling rapid prototyping without molds, it suits high-power electronics, aerospace, and medical fields, delivering lightweight, efficient solutions for advanced manufacturing.
Common 3D printable products:
- Industrial Wear-Resistant Components
- Electronic and Semiconductor Devices
- Aerospace High-Temperature Components
What do you want printed?
You can also send us 3D object files at our Email:Jerry.xiao@julyn.cn
Technical data sheet Alumina
Maximum part size and minimum feature size will vary based on selected resolution. 3D-printed aluminum is available in high, normal, and large format resolutions.
| Product name | FormAlox 999 | FormAlox 998 | FormAcon 3Y |
| Product description | Engineering alumina parts, manufactured using LCM additive manufacturing method | Engineering zirconia parts, manufactured using LCM additive manufacturing method | |
| Material | Aluminum oxide (Al O2 3) | Aluminum oxide (Al O2 3) | Zirconium oxide (ZrO3 mol-% Y O2 3 stabilized) |
| Purity | 99.9 % | 99.8 % | 99.8 % |
| Density | 3.985 g/cm3 (99.4 % of theoretical density) | 3.985 g/cm3 (98.4 % of theoretical density) | 6.088 g/cm3 (99.4 % of theoretical density) |
| Hardness HV10 | 1550 | 1550 | 1250 |
| Bending strength | 430 MPa (4-point) | 400 MPa (4-point) | 930 MPa (4-point) |
| Young‘s modulus | 300 GPa | 380 GPa | 205-210 GPa |
| CTE | 7-8 ppm/K | 7-8 ppm/K | 10 ppm/K |
| Thermal conductivity | 37 W/mK | 29 W/mK | 2.5-3 W/mK |
| Surface roughness Ra | ~ 0.4 µm | 0.9 µm | ~ 0.3 µm |
| Max. operating temp. | 1650 °C | 1650 °C | 1500 °C |
| Color | White | White | White |
| Size | Max.: 84.9 x 51.4 x 156.8 mm Wall thickness: up to 4 mm | Max.: 84.9 x 51.4 x 156.8 mm Wall thickness: up to 5 mm | |
How Does Ceramics 3D Printing Work?
First, design a 3D model using CAD software, which is then sliced and imported into the printer. During printing, depending on the technology (such as stereolithography, fused deposition, or powder bed fusion), ceramic slurries, powders, or filaments are stacked layer by layer, with strict control over layer thickness and precision. The printed “green body” contains binders or solvents and must first undergo low-temperature debinding (e.g., 100-600°C) to remove organic matter, followed by high-temperature sintering (1300-1600°C) to densify ceramic particles and form high-strength final products. Some processes also require subsequent grinding and polishing to improve surface accuracy.
