Black Resin 3D Printing Service
Black resin offers high contrast and visual impact, enabling matte or glossy surfaces with 0.1mm-level detail resolution, ideal for designs requiring hidden internal structures or enhanced three-dimensional effects. With strong light resistance and anti-yellowing properties, it cures to a smooth, durable surface that supports fine engraving and complex hollowing, requiring minimal post-processing (e.g., painting, electroplating). Widely used in high-fidelity prototypes, artistic sculptures, and appearance-critical functional parts, balancing aesthetic appeal and structural strength.

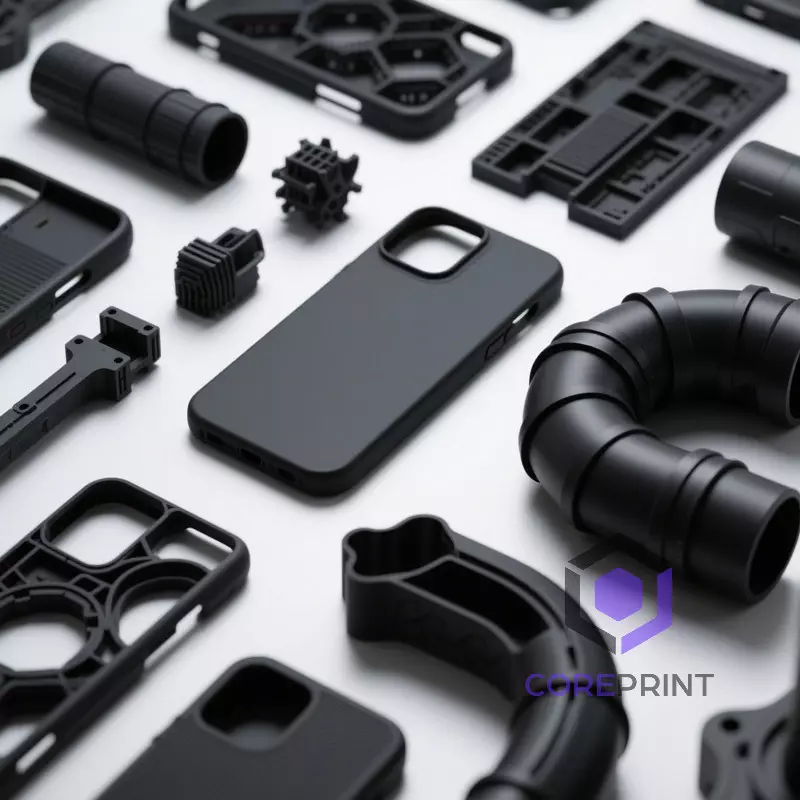

Common 3D printable products:
- Consumer Electronics & High-End Design Such as smartphone casings
- Artistic Creation & Cultural Products Used for sculpture prototypes
- Automotive & Aerospace Prototyping Used for engine cover models
What do you want printed?
You can also send us 3D object files at our Email:jerry@coreprint3d.com
Black Resin Material Properties
| Material Name | Material Characteristics | Density at 25℃, cm³ | Minimum Wall Thickness, mm | Tensile Strength, MPa | Flexural Strength, Mpa | Material Hardness |
| White Resin(2018-2) | The white material features fast molding speed and high printing precision. The printed parts have excellent moisture resistance, good chemical resistance, a low shrinkage rate, good dimensional stability, and durability. The parts also have a certain degree of adsorption force, which can meet the requirements of conventional painting. Meanwhile, it possesses excellent mechanical properties. | 1.15/cm³ | 0.8mm | 60-75Mpa | 70-75Mpa | 82邵氏D/260 - 300(HV)/24-28(HB) |
| White Resin(8111) | 1.14/cm³ | 42.1Mpa | 95Mpa | 86邵氏D/300- 350(HV)/28-32(HB) | ||
| White Resin(HP-02A) | 1.14/cm³ | 25-30Mpa | 60-75Mpa | 85邵氏D/280- 330(HV)/26-30(HB) | ||
| Tough Resin(XLST) | Super-tough, high-hardness, and high-strength ABS material; Thin-walled parts with a thickness of 2.5mm can withstand a temperature of 70°C; It has excellent detail presentation, a low shrinkage rate, good dimensional stability, and durability. It can meet the requirements of painting and is suitable for components that resist high-intensity impacts and need shock absorption. | 1.15/cm³ | 40-58Mpa | 71-76Mpa | 82邵氏D/320- 370(HV)/30-34(HB) | |
| Tough Resin(8228) | 1.15/cm³ | 51.21Mpa | 93.5Mpa | 82邵氏D/320- 370(HV)/30-34(HB) | ||
| Transparent Resin(8001) | The colorless material has proven dimensional stability through practice, and it is suitable for general purposes, detailed modeling, and transparent visual simulation. | 1.12/cm³ | 41.56MPa | 75.95MPa | 83邵氏D/270- 330(HV)/25-30(HB) |
How Does Resin 3D Printing Work?
The SLA (Stereolithography) process for resin materials is as follows:
First, design a 3D model with CAD software and import it into slicing software to layer it (0.05-0.1mm thickness) and generate support structures. During printing, the lifting platform submerges into a liquid photosensitive resin tank, where an ultraviolet laser or projector cures the resin layer by layer according to sliced data, forming each contour as the platform lowers by one layer thickness. After completion, the workpiece is removed, supports are detached, and uncured resin is cleaned with alcohol. Finally, post-curing in a UV chamber enhances the resin’s strength, gloss, and weather resistance. With high precision (up to ±0.1mm), this technology is ideal for detailed complex parts like precision molds, jewelry prototypes, and medical guides.
Get An Accurate Quote Quickly
If you have 3D printing needs, you can leave your email address, and we will reply to you within 30 minutes.
