Alumina Ceramics 3D Printing Service
It can form complex geometries, breaking through traditional processing limitations, suitable for high-precision fields like aerospace and healthcare. With high material utilization, it reduces waste and enables customization, such as personalized dental prostheses and bone substitutes. The efficient process shortens R&D cycles and lowers mold costs. Products retain alumina’s high hardness, heat resistance, and corrosion resistance

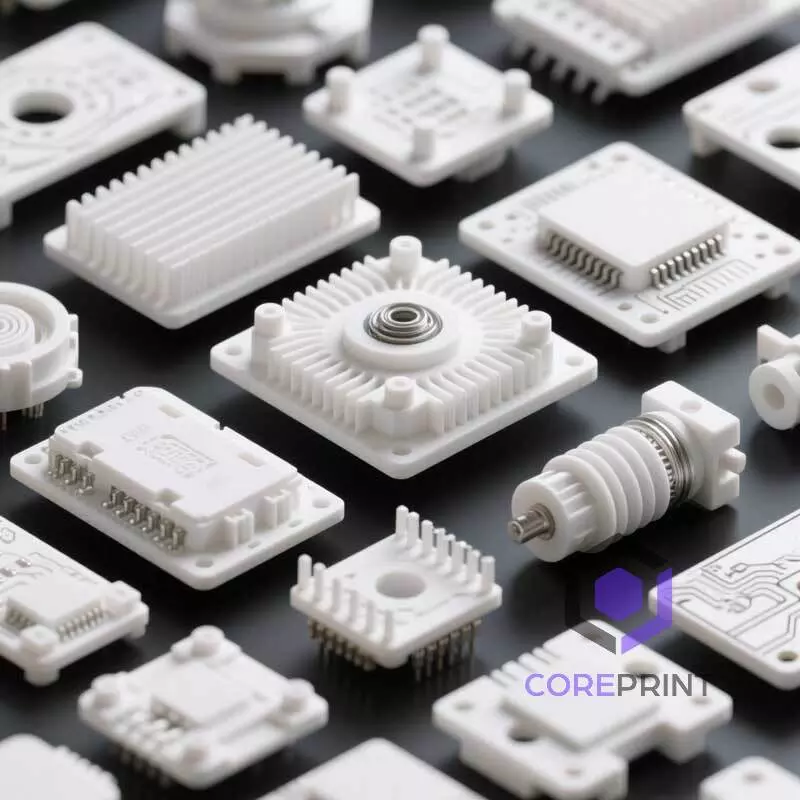

Common 3D printable products:
- Industrial and Mechanical Components
- Medical and Biomedical Products
- Electronic and Energy Devices
What do you want printed?
You can also send us 3D object files at our Email:jerry@coreprint3d.com
Technical data sheet Alumina
Maximum part size and minimum feature size will vary based on selected resolution. 3D-printed aluminum is available in high, normal, and large format resolutions.
| Product name | FormAlox 999 | FormAlox 998 | FormAcon 3Y |
| Product description | Engineering alumina parts, manufactured using LCM additive manufacturing method | Engineering zirconia parts, manufactured using LCM additive manufacturing method | |
| Material | Aluminum oxide (Al O2 3) | Aluminum oxide (Al O2 3) | Zirconium oxide (ZrO3 mol-% Y O2 3 stabilized) |
| Purity | 99.9 % | 99.8 % | 99.8 % |
| Density | 3.985 g/cm3 (99.4 % of theoretical density) | 3.985 g/cm3 (98.4 % of theoretical density) | 6.088 g/cm3 (99.4 % of theoretical density) |
| Hardness HV10 | 1550 | 1550 | 1250 |
| Bending strength | 430 MPa (4-point) | 400 MPa (4-point) | 930 MPa (4-point) |
| Young‘s modulus | 300 GPa | 380 GPa | 205-210 GPa |
| CTE | 7-8 ppm/K | 7-8 ppm/K | 10 ppm/K |
| Thermal conductivity | 37 W/mK | 29 W/mK | 2.5-3 W/mK |
| Surface roughness Ra | ~ 0.4 µm | 0.9 µm | ~ 0.3 µm |
| Max. operating temp. | 1650 °C | 1650 °C | 1500 °C |
| Color | White | White | White |
| Size | Max.: 84.9 x 51.4 x 156.8 mm Wall thickness: up to 4 mm | Max.: 84.9 x 51.4 x 156.8 mm Wall thickness: up to 5 mm | |
How Does Ceramics 3D Printing Work?
First, design a 3D model using CAD software, which is then sliced and imported into the printer. During printing, depending on the technology (such as stereolithography, fused deposition, or powder bed fusion), ceramic slurries, powders, or filaments are stacked layer by layer, with strict control over layer thickness and precision. The printed “green body” contains binders or solvents and must first undergo low-temperature debinding (e.g., 100-600°C) to remove organic matter, followed by high-temperature sintering (1300-1600°C) to densify ceramic particles and form high-strength final products. Some processes also require subsequent grinding and polishing to improve surface accuracy.
