High-Precision Resin 3D Printing Service
High-precision resin excels in sub-millimeter accuracy (0.025-0.05mm layer thickness) and micron-level detail reproduction, precisely printing microstructures like 0.1mm thin walls and 0.2mm small holes with smooth, layer-free surfaces. With low shrinkage (<0.1%) and strong dimensional stability, it cures to high hardness (Shore D 80-95), ideal for functional or appearance parts requiring strict dimensional tolerances. Widely used in jewelry master molds, dental crowns, and microfluidic chips, where precision is critical.

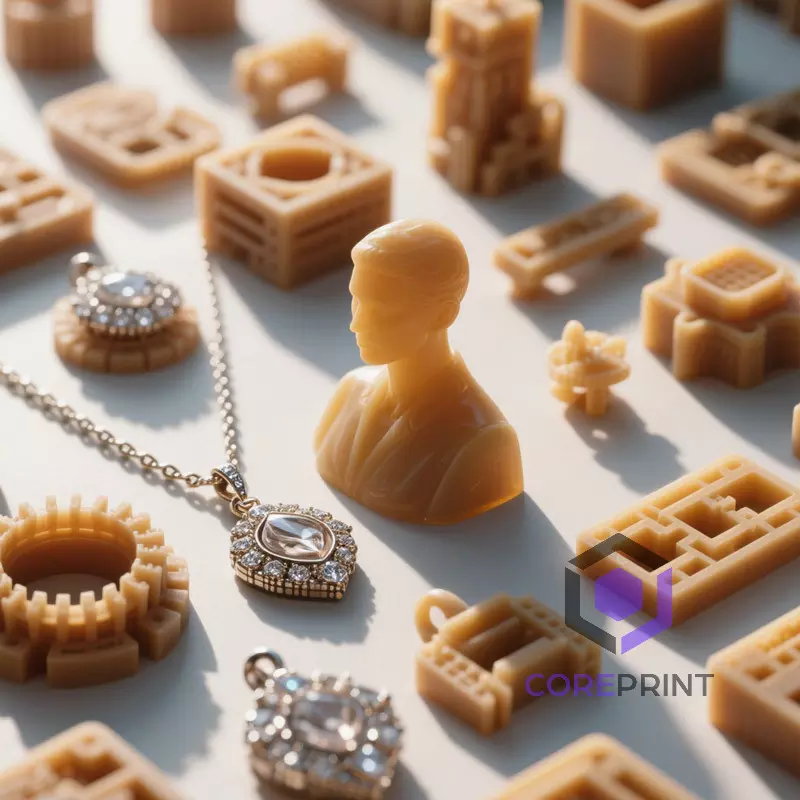

Common 3D printable products:
- Jewelry & Luxury Goods Manufacturing Such as wax molds for rings and necklaces
- Dental & Oral Healthcare Used for dental crowns, bridges
- Micro-Nano Manufacturing & Precision Instruments Including microfluidic chips
What do you want printed?
You can also send us 3D object files at our Email:Jerry.xiao@julyn.cn
High-Precision Resin Material Properties
6-Resin_High- Precision Resin
| Tensile Strength / Modulus (Mpa) | Yield Strength / Modulus (Mpa) | Elongation (%) | Heat Deflection Temperature (°C) |
| 47 | 67 / 2178 - 2222 | / | 46 |
How Does Resin 3D Printing Work?
The SLA (Stereolithography) process for resin materials is as follows:
First, design a 3D model with CAD software and import it into slicing software to layer it (0.05-0.1mm thickness) and generate support structures. During printing, the lifting platform submerges into a liquid photosensitive resin tank, where an ultraviolet laser or projector cures the resin layer by layer according to sliced data, forming each contour as the platform lowers by one layer thickness. After completion, the workpiece is removed, supports are detached, and uncured resin is cleaned with alcohol. Finally, post-curing in a UV chamber enhances the resin’s strength, gloss, and weather resistance. With high precision (up to ±0.1mm), this technology is ideal for detailed complex parts like precision molds, jewelry prototypes, and medical guides.
Get An Accurate Quote Quickly
If you have 3D printing needs, you can leave your email address, and we will reply to you within 30 minutes.
